Standard Products
Highly functional products
ia-standard-productsHighly functional mesh products for industrial materials are introduced here by material.
Various types of mesh are available, including mesh with superior strength and heat resistance, and non-distorted mesh.
For the standards table of the product, please download the documents from the download form at the bottom of the page.
Features
Application examples
Product specifications
| materials |
|---|
| Mesh count |
| Wire diameter |
| Application examples |
| Material of mesh |
| Processing methods |
| Target material |
| Features |
| Applications |
| Resin materials |
Comparison of properties
| Tensil strength |
|---|
| emulsion adhesion |
| antistatic capability |

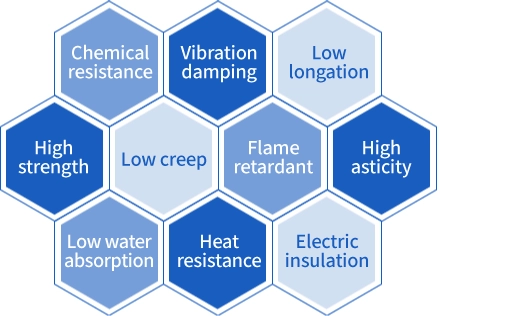

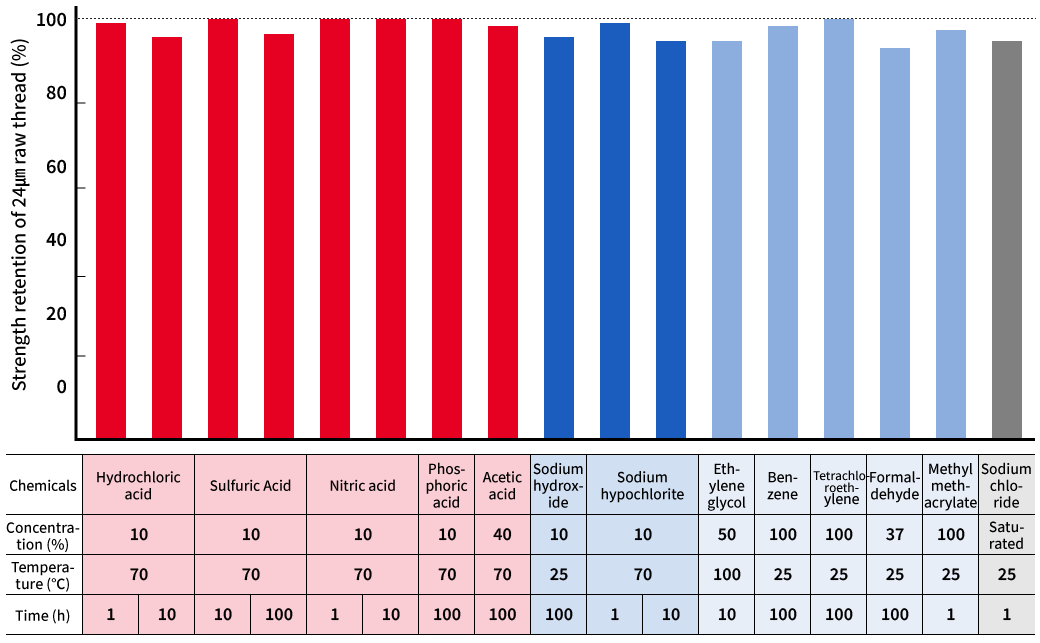

High-performance liquid crystal polymer (LCP) mesh is a highly functional mesh made of thermoplastic, fully aromatic polyester threads that exhibit melt liquid crystallinity. High strength even with fine wire diameters enables the production of thin mesh with a high open ratio.
It also has excellent heat resistance.
- PEM (solid polymer electrolysis), AEM (anion exchange membrane water electrolysis) membrane reinforcements
- Sieve mesh
- Acoustic equipment
- For screen printing

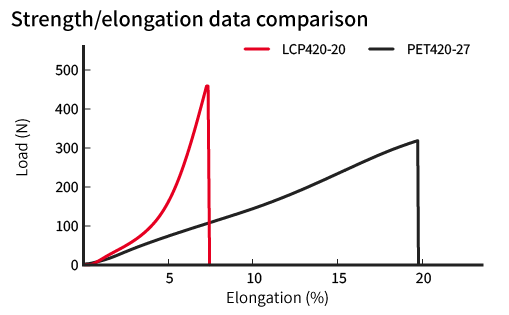

Excellent mechanical properties
Excellent mechanical properties provide high strength even with fine wire diameters.
JIS 1096-1990 General Testing Methods for Woven Fabrics
Strip width: 5 cm
Clamping length: 20 cm
Tension speed: 10 cm/min
Excellent heat resistance
Excellent heat resistance makes it resistant to expansion and contraction as well as to color change at high temperatures.

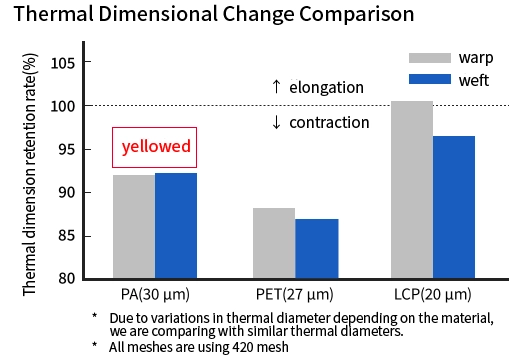

Heat resistance test
Crosshairs were drawn vertically and horizontally in the center of the mesh cloth (10 cm square) of each material, and the lengths were measured before and after heating.
Drying oven temperature: 200°C
Time: 30 minutes

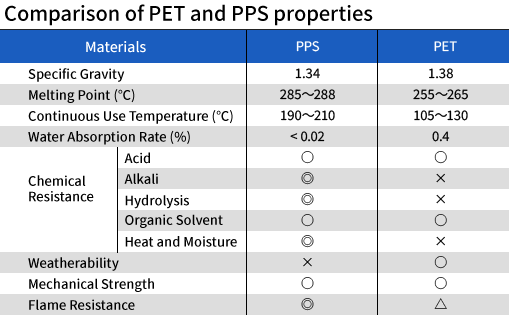

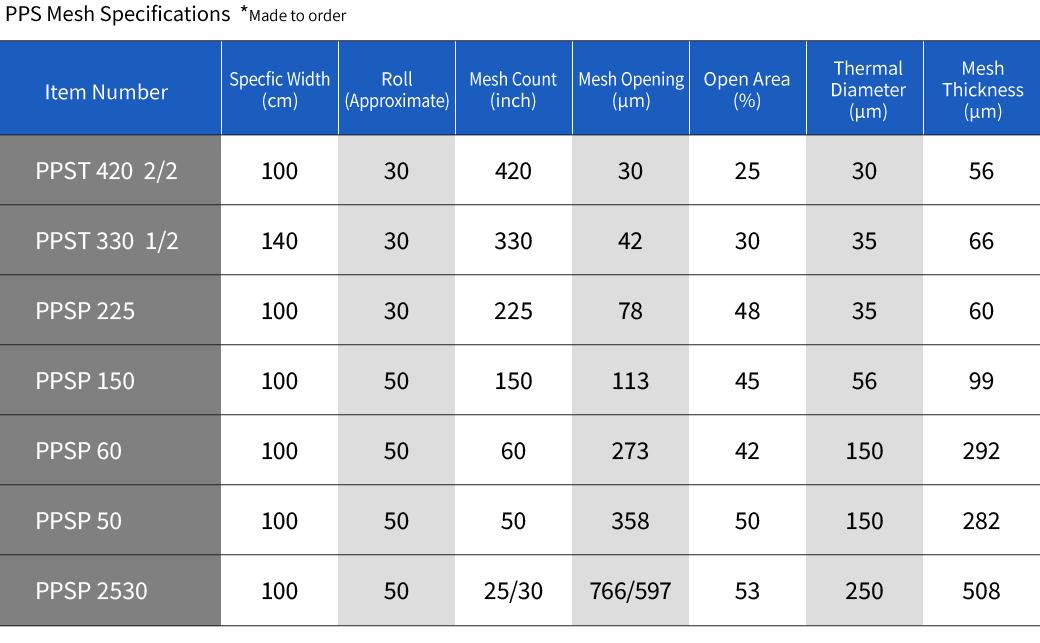

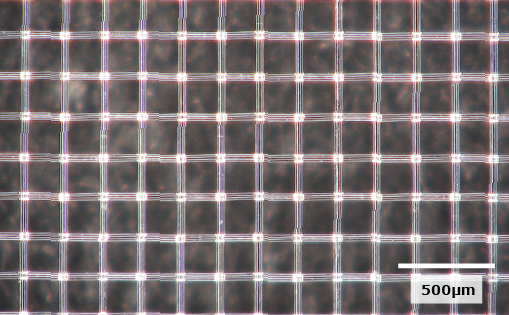

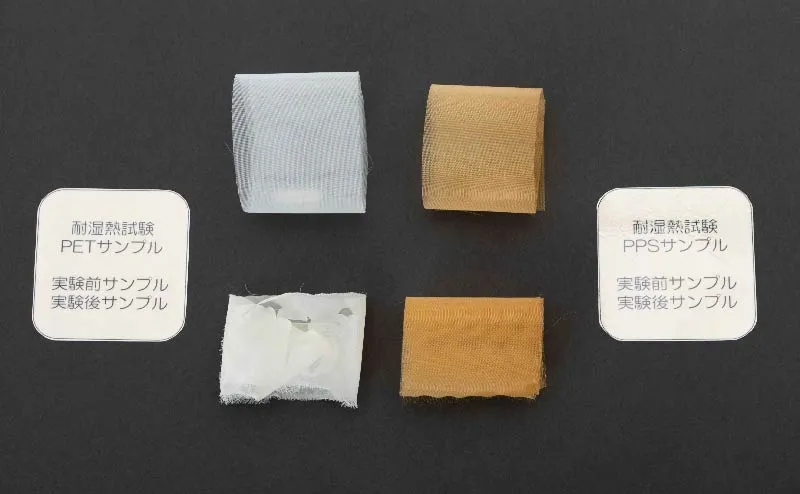

PPS mesh is a high-performance mesh that utilizes crystalline high-performance thermoplastic engineering plastic. It has excellent heat resistance, chemical resistance, and steam heat resistance. Weaving is possible with threads ranging from fine to thick diameters.
Application examples
- For alkaline water electrolysis membrane reinforcements
- For filtration of plating solution

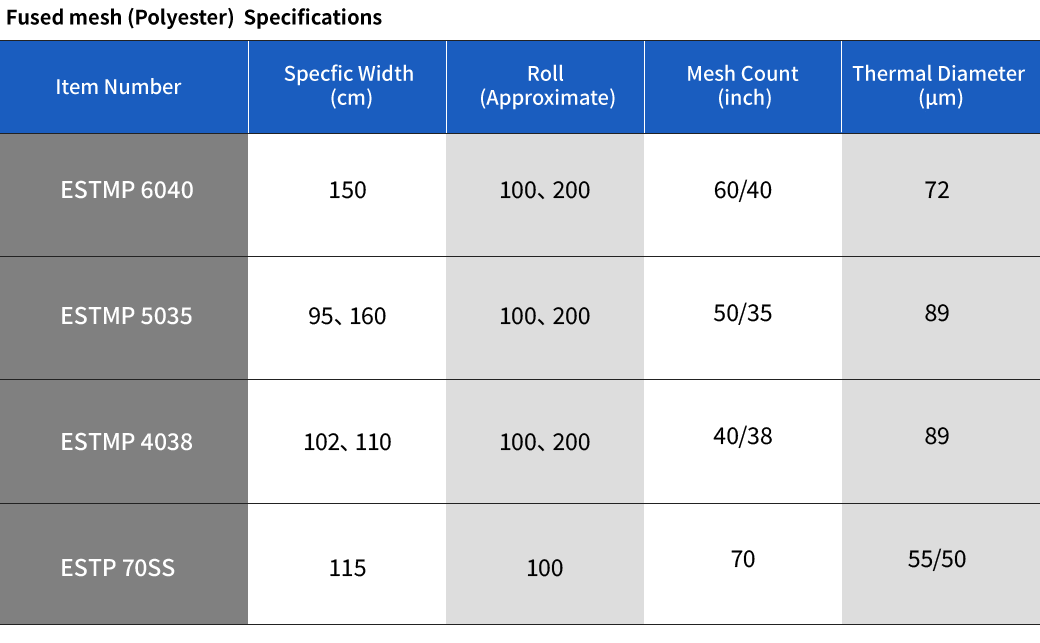

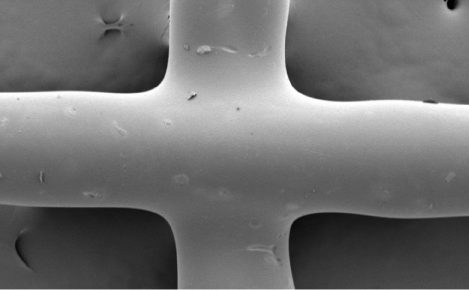

The intersections of the threads are fused to each other to prevent mesh distortion.
Please consult with us for made-to-order products.
Application examples
- Air conditioning filters
- Filters for home appliances (vacuum cleaners, air conditioners)

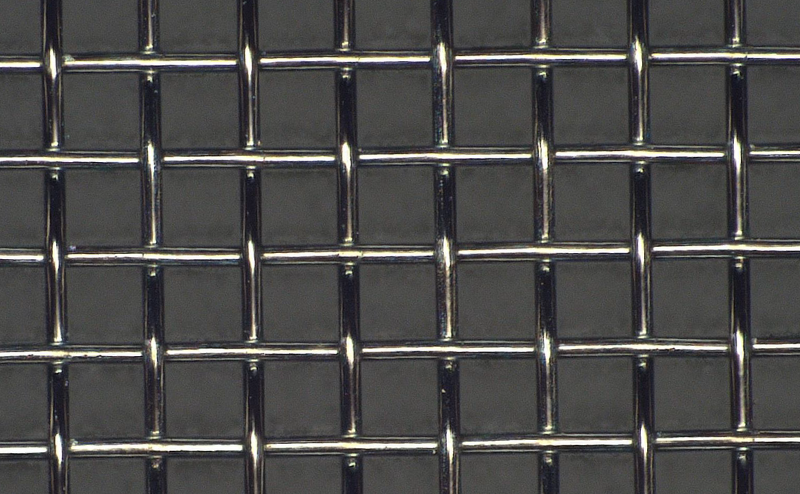

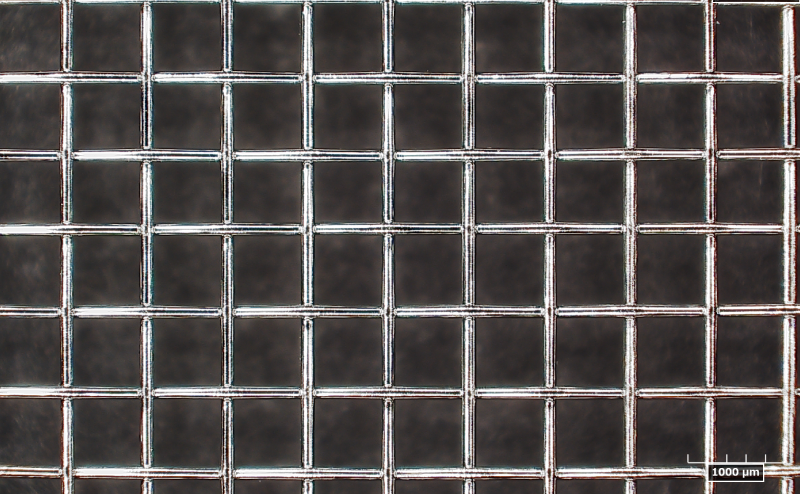

In alkaline water electrolysis, one of the hydrogen production methods, this material is resistant to corrosion in highly alkaline solutions and high-temperature environments.
Application examples
- For electrodes (hydrogen production, fuel cells, etc.)
- Components for SOEC and SOFC
The material used has the highest melting point (3,410°C) among metals, making it highly heat resistant.
It also has excellent corrosion resistance. It also features high density, electrical resistance, strength, and elasticity.
Application examples
- Filtration in vacuum and high-temperature environments
- Screen printing
