Mesh cloth for screen printing

V-SCREEN NEXT

monofilament-mesh

High-performance liquid crystal polymer (LCP) mesh with increased print dimensional accuracy, durability, resolution, etc., to meet even more advanced printing requirements.

Features

Application examples

Electronic components, solar cells, printed circuit boards, combination supports

Product specifications

materials
Mesh count
Wire diameter
Application examples
Material of mesh
Processing methods
Target material
Features
Applications
Resin materials

Comparison of properties

Tensil strength
emulsion adhesion
antistatic capability

Product specifications

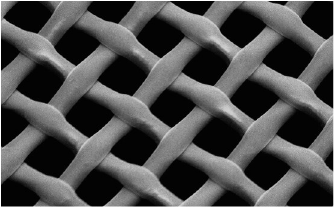

Enlarged image taken with SEM of V-screen NEXT

Materials	Liquid crystal polymer（LCP）
Mesh count	330, 380, 420 per inch
Thread diameter	20, 24 μm

Ultra-fine threads of high-performance liquid crystal polymer (LCP) are used.
In the high-performance liquid crystal polymer (LCP) lineup, we also offer products using 20 µm threads, the thinnest synthetic fiber mesh ever used for screen printing.

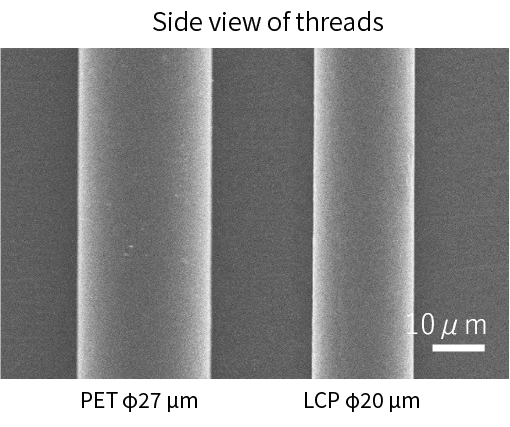

Side view photo of PET and LCP filaments, with diameters of 27µm and 20µm respectively

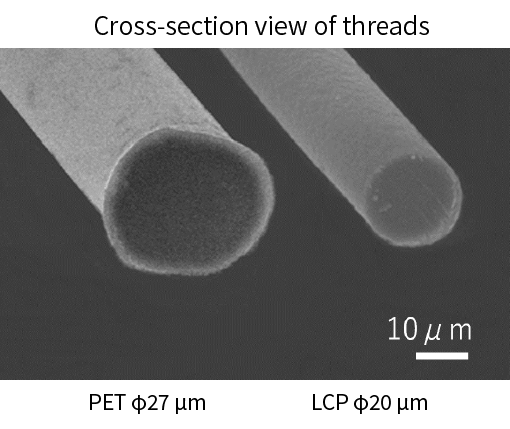

Cross-sectional photo of PET and LCP filaments, with diameters of 27µm and 20µm respectively

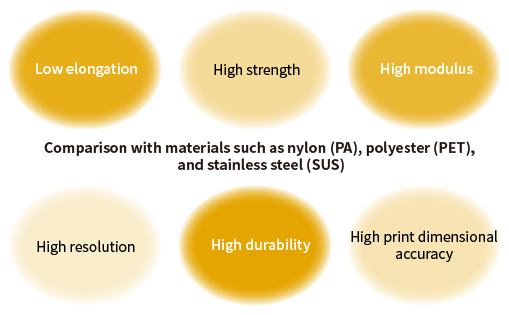

Diagram showing properties of nylon, polyester, and stainless steel materials: low elongation, high strength, high elasticity, high resolution, high durability, high printing dimensional accuracy

The use of ultra-fine threads achieves a high count mesh with a high open ratio.
To meet market needs, we also offer a lineup of products with a mesh count of 400 or more.

Comparison of properties

Tensil strength	2,100 N/mm²
emulsion adhesion	Good

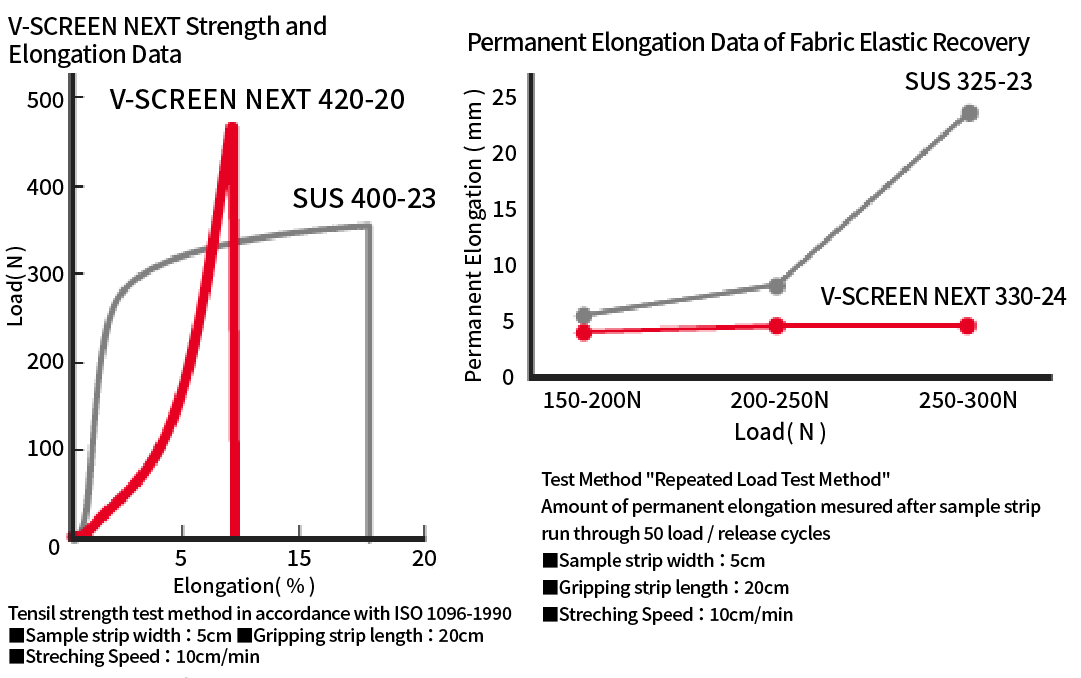

Graphs of tensile strength data and residual elongation data of fabric elastic recovery for V-SCREEN NEXT

Excellent mechanical properties

High elasticity recovery allows for extremely low tension loss even after repeated printing, reducing misalignment.

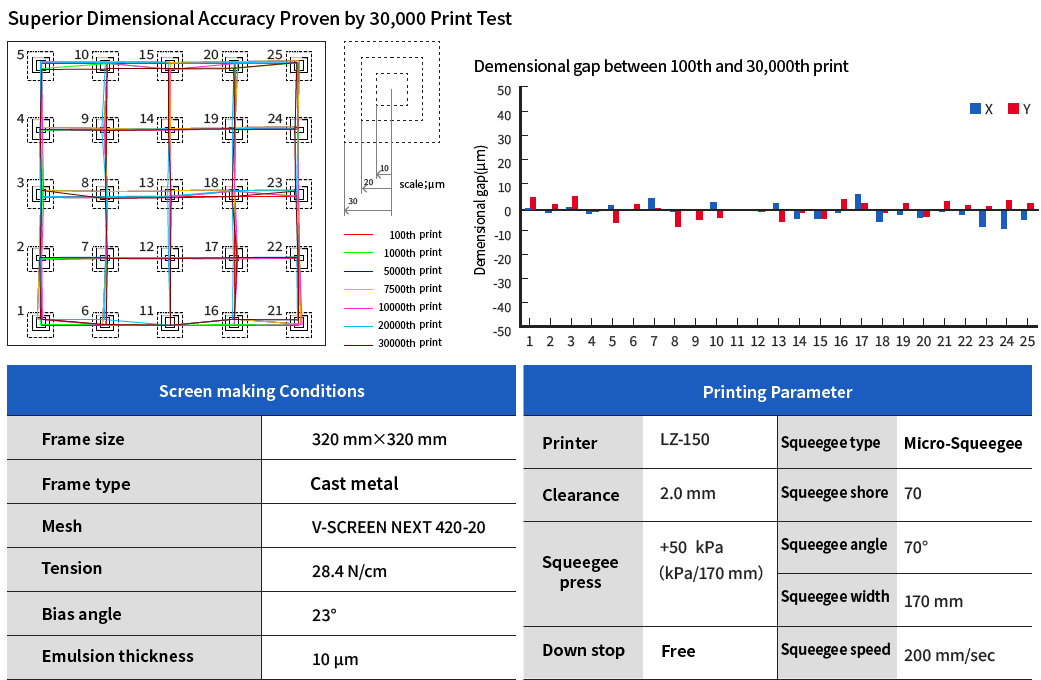

Superior Dimensional Accuracy Proven by 30,000 Print Test

Dimensional accuracy graph of V-SCREEN NEXT: results of 30,000 print tests, Table of plate-making conditions and printing conditions

High Performance Exposure

V-SCREEN NEXT can be used with any type of photosensitive emulsion (SBQ type or diazo type).

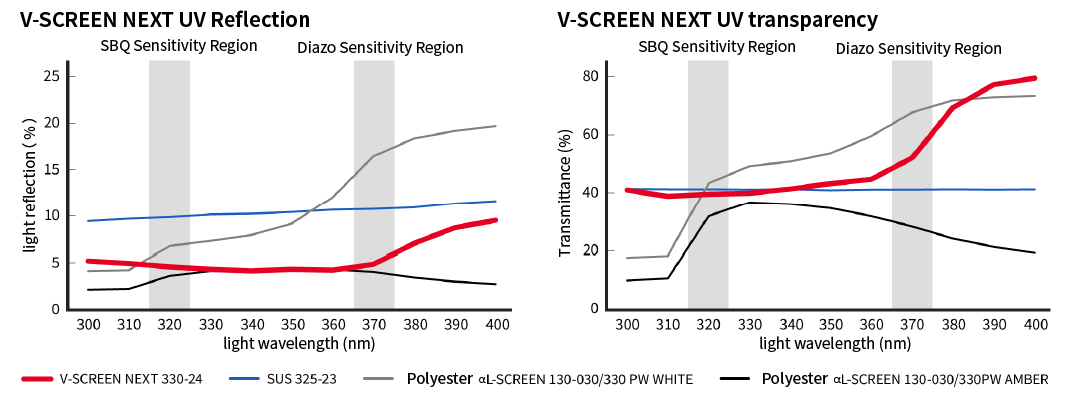

High UV transmittance and low reflectance prevent halation and provide high exposure characteristics.

Performance comparison graph by product: tensile strength (N/mm²) of soft stainless steel, hard stainless steel, and new material compared in M-10, M-13, M-30, W-40

Excellent Resolution for Fine Line Printing

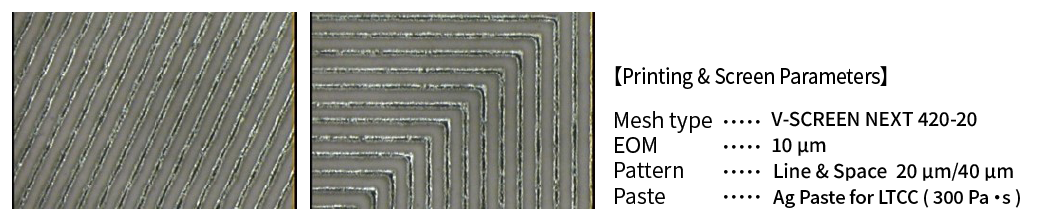

Microscope images showing main conditions of plate making and printing using V-SCREEN NEXT 420-20

Recommendations

Yellow, white, gray screen printing mesh roll

Mesh cloths for screen printing

Additional process of extra function

photo of Screen stretcher(High-precision semi-automatic screen stretcher "VALUE-MODEL")

Other product information
