SF is an abbreviation for "synthetic fiber," which is a fiber made artificially through a chemical process using mainly petroleum as a raw material. NBC Meshtec offers polyester (PET), nylon (polyamide, PA), polypropylene (PP), polyethylene (PE), etc. as general-purpose synthetic fibers.
High-performance synthetic fibers are materials with superior strength, heat resistance, and chemical resistance compared to general-purpose synthetic fibers. We offer a wide variety of high-performance synthetic fiber meshes, and we combine the characteristics of the materials with our weaving technologies to meet the needs of each individual customer.
Features
Application examples
Product specifications
| materials |
|---|
| Mesh count |
| Wire diameter |
| Application examples |
| Material of mesh |
| Processing methods |
| Target material |
| Features |
| Applications |
| Resin materials |
Comparison of properties
| Tensil strength |
|---|
| emulsion adhesion |
| antistatic capability |

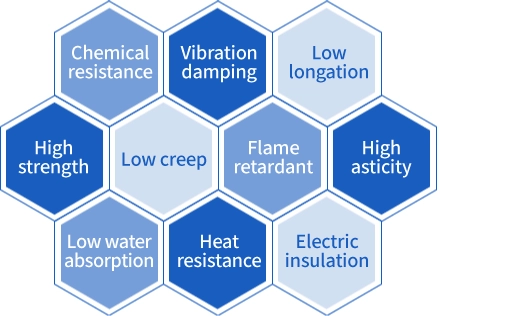

Features
- High-performance mesh made of thermoplastic, fully aromatic polyester threads that exhibit melt liquid crystallinity, which is a highly functional material
- High strength even with fine wire diameter enables production of thin meshes with high open ratio
- Excellent heat resistance
Application examples

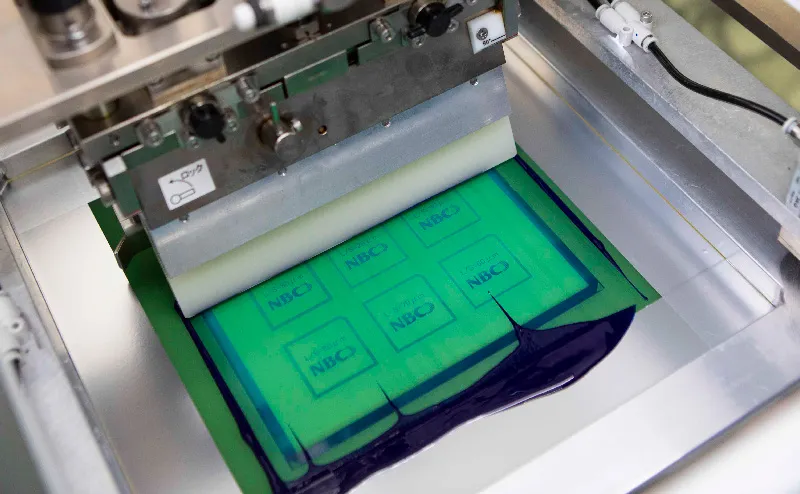

- For screen printing
- PEM (proton exchange membrane),
AEM (anion exchange membrane), membrane support
- Sieve mesh
- Audio equipment

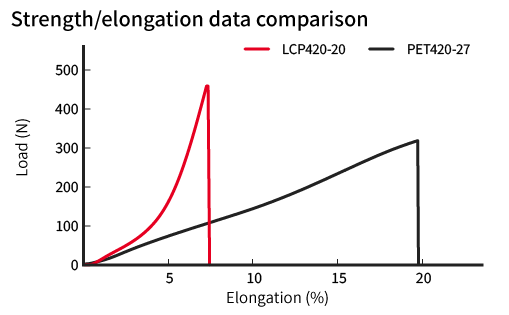

Excellent mechanical properties provide high strength even with ultra-fine wires.
JIS 1096-1990 General Testing Methods for Woven Fabrics
Strip width: 5 cm
Clamping length: 20 cm
Tension speed: 10 cm/min
Excellent heat resistance makes it resistant to expansion and contraction as well as to color change at high temperatures.

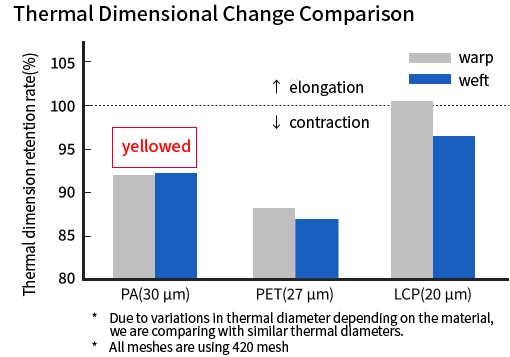

Heat resistance test
Crosshairs were drawn vertically and horizontally in the center of the mesh cloth (10 cm square) of each material, and the length of the crosshairs was measured before and after heating.
Drying oven temperature: 200°C
Time: 30 minutes

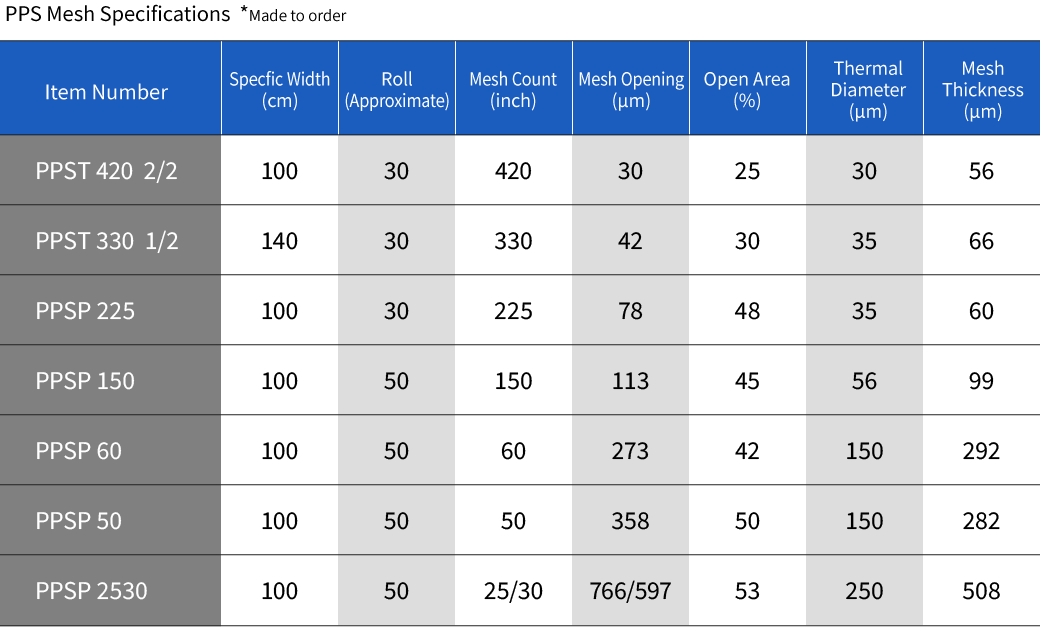

Features

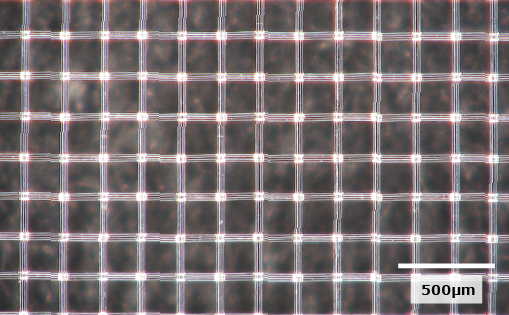

- High-performance mesh using PPS resin (crystalline high-performance thermoplastic engineering plastic)
- Excellent heat resistance, chemical resistance, steam heat resistance
- Capable of weaving fine to thick wire diameters
Application examples
- Alkaline water electrolysis membrane support
- For filtration of plating solution

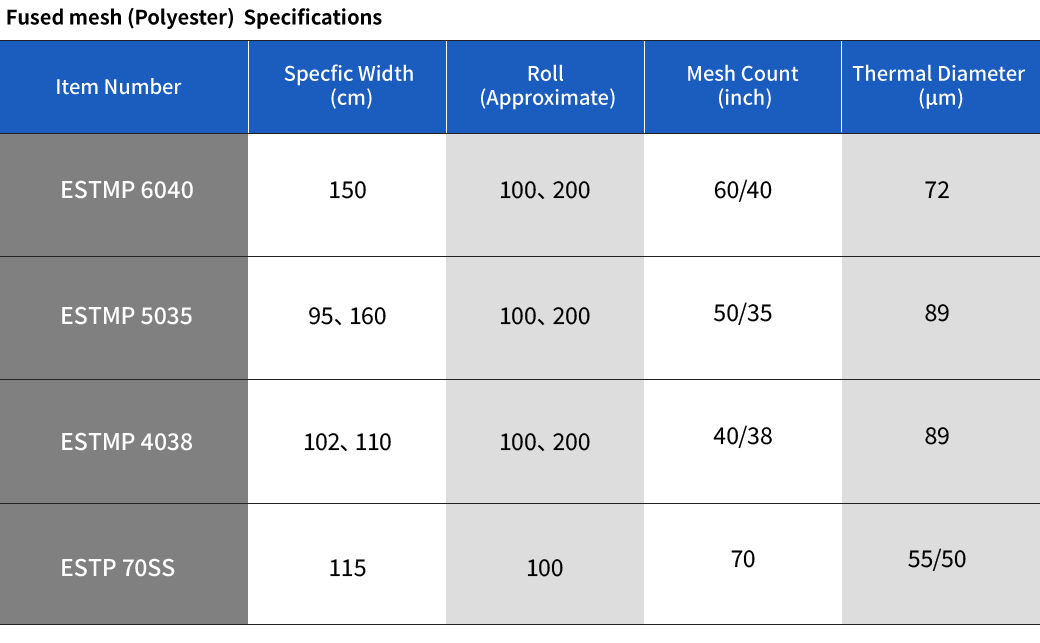

Features
- Non-distorted mesh with fused thread intersections
- Made-to-order product
Application examples
- Air conditioning filters
- Home appliance (vacuum cleaner, air conditioner) filters
Features
- Fine wire diameter and high open ratio
- Increased filtration efficiency and filter performance compared to products with the same mesh opening
Application examples
- Various filters, various filtration
- Ion permeable membrane support used in hydrogen production equipment (hydrocarbon-based, fluorine-based)

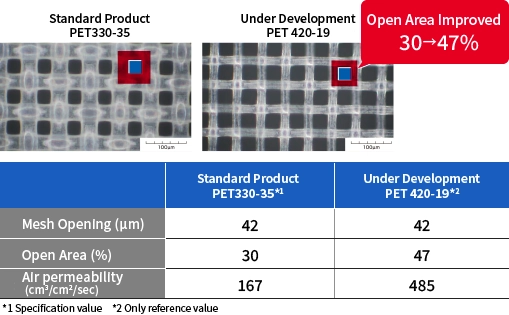

[Newly developed product] PET420-19
Compared to the standard product PET330-35, the open ratio has been increased to 47%.

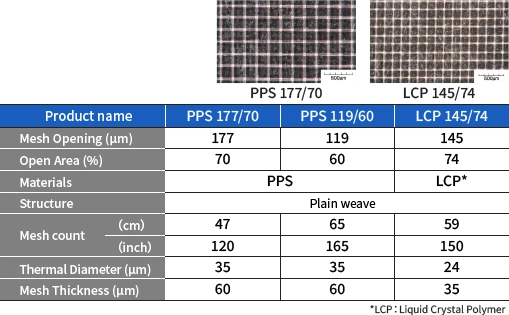

Various types of high open ratio mesh
We also offer a variety of other PPS and high-performance liquid crystal polymer (LCP) mesh cloth products.
Please feel free to contact us.
