NBC Meshtec Inc.

Raw materials

CufitecTM Coating Agent

cu-material

A UV curable coating for polyester (PET) with CufitecTM Liquid Dispersion added.
CufitecTM Coating Agent is Antiviral SIAA Mark certified.

Features

- Can be applied as is
- Coating film formed by application, drying, and UV irradiation
- High antiviral and antibacterial performance
- Antiviral SIAA Mark certified*

Color : Coating agent : Lavender color
Coating film : Translucent (transparent with a thin white tint)

Coating method : Gravure printing, etc.

Application : Films, etc.

*Reduces the number of specific viruses on the product.
Inorganic, Base / Dispersion / JP0613221A0001R
The SIAA Mark is displayed on products that have been evaluated according to the ISO 21702 method and for which quality control and information have been disclosed under the SIAA guidelines.
! Precautions
- Antiviral treatment is not intended to cure or prevent disease.
- Conforms to the SIAA safety criteria.

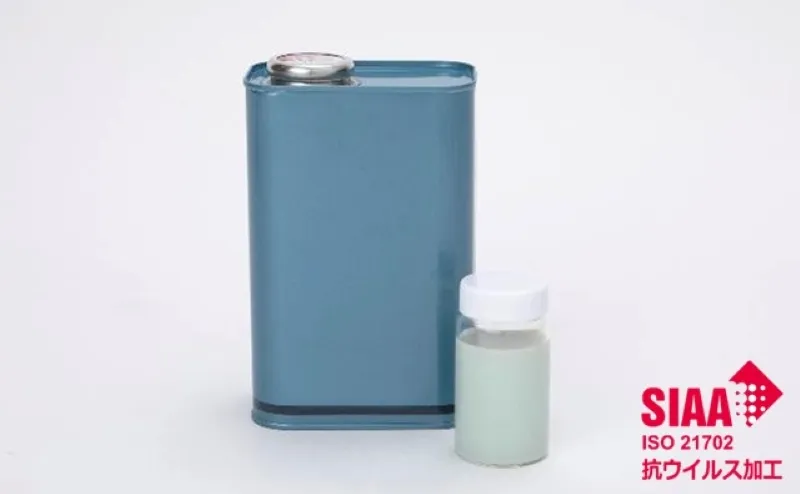

Photograph of Cufitec coating agent and image of SIAA antiviral brand mark

Application examples

Product specifications

materials
Mesh count
Wire diameter
Application examples
Material of mesh
Processing methods
Target material
Features
Applications
Resin materials

Comparison of properties

Tensil strength
emulsion adhesion
antistatic capability
0

Antiviral performance (prototype example)

Methods

A virus solution of enveloped or non-enveloped virus was dropped on a polyester (PET) film treated with CufitecTM Coating Agent to examine the virus infectivity titer after 60 minutes of contact time using the plaque method.
*In-house test conducted in accordance with ISO 21702 with only the contact time changed

Results

In both cases of enveloped virus (left graph) and non-enveloped virus (right graph), the virus infectivity titer was reduced by more than 99.9% in 60 minutes compared to the untreated product (detection limit).

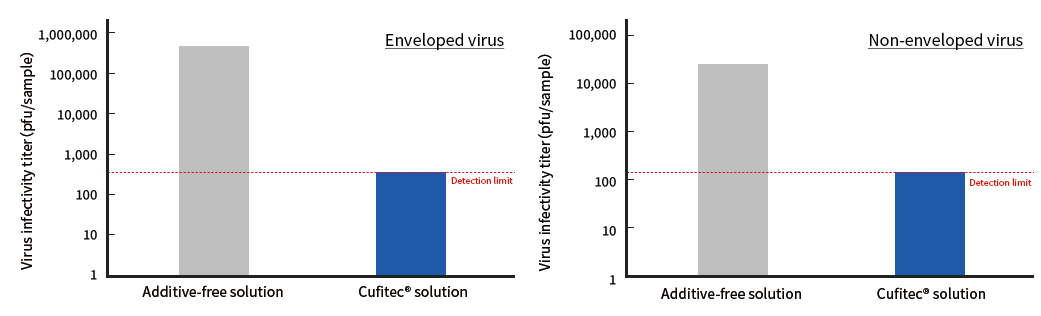

Graph comparing infection titers in antiviral tests for enveloped or non-enveloped viruses between raw and Cufitec processed products
Test results for enveloped virus (left) and non-enveloped virus (right)

Antibacterial performance (prototype example)

Methods

A gram-negative or gram-positive bacteria solution was dropped on a polyester (PET) film treated with CufitecTM Coating Agent to examine the viable bacteria count after 30 minutes of contact time using the mixed plate culture method (colony method).
*In-house test conducted in accordance with JIS Z 2801 with only the contact time changed

Results

In both cases of gram-negative bacteria (left graph) and gram-positive bacteria (right graph), the viable bacteria count was reduced by more than 99.99% in 30 minutes compared to the untreated product (detection limit).

Graph comparing viable counts of Gram-negative or Gram-positive bacteria in antibacterial tests of untreated and Cufitec processed products
Test results for gram-negative bacteria (left) and gram-positive bacteria (right)

*The test data shown on this page are actual measured values of prototypes and are not guaranteed.
